Trolling the Limits of Exploration
Troll is the expedition touring bike that started us down the winding, mostly unpaved path of dirt road touring. It’s fully-equipped to get you out there — way out there — for very long periods of time and its highly-versatile dropout design allows you to do so in a variety of ways. Singlespeed? Rohloff? Pulling a trailer? Yep. All of that and so much more.
Chances are, Troll can handle most of the ideas that are bouncing around your noggin. Feel like riding from Alaska to the tip of South America? You can load everything you need on Troll and still have plenty of space for “souvenirs.” Troll can handle it even if you don’t think you can.
“Troll believes in you, so you don’t have to."
- Compatible with both disc and rim brakes
- All the accessory barnacles you could ever possibly ask for including rack and fender, multiple three-pack mounts and mid-blade.
- Gnot-Boost rear spacing with Rohloff torque arm slot and Bill/Ted trailer mount
- Clearance for 26" x 3" tires (26 x 2.8" with fenders)

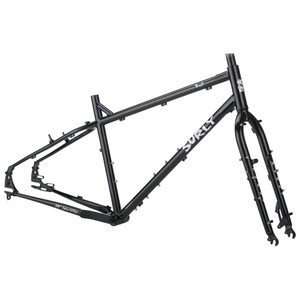

Frameset
| Frame | Horizontal slotted with derailleur hanger; Surly “Gnot Boost” 135, 142, and/or 148mm hub spacing compatibility |
|---|---|
| Fork | 420mm axle-to-crown x 43mm offset, tapered and butted straight blade, 4130 CroMoly. |
| Seatpost Clamp | Surly stainless, 30mm |
Components
| Headset | Cane Creek 10 1-1/8" |
|---|---|
| Brakes | Avid BB7 Cleansweep 180/160 rotors |
| Brake Levers | Avid FR-5 |
| Shifters | Microshift SL-M10 |
| Stem | ProMax 4 bolt 31.8 |
| Handlebar | Surly Moloko |
| Grips | Velo lock-on |
| Saddle | WTB Volt Sport |
| Seatpost | ProMax 27.2 350L offset |
Drivetrain
| Crankset | Shimano Deore 26/36/48t |
|---|---|
| Bottom Bracket | Shimano Octalink 73x118 |
| Front Derailleur | Shimano Deore FD-T6000 |
| Rear Derailleur | Shimano Deore RD-T6000 |
| Cog or cogset | Microshift 10spd 11-36t |
| Chain | KMC X10-NP |
Wheels
| Front Hub | Shimano Deore M525 36h QR |
|---|---|
| Rear Hub | Shimano Deore M525 36h QR |
| Rims | Alex Adventurer 2 Tubeless Ready |
| Tires | Surly ExtraTerrestrial 26 x 2.5" |
