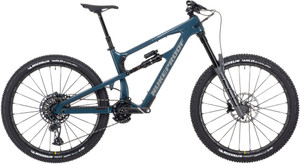

Nukeproof Mega 275c Factory (2021)

Nukeproof Mega 275c Factory (2021)

Nukeproof
£5,399.99
(No reviews yet)
Current Stock:
Description

Since 2009 the Nukeproof Mega has been on a constant development to meet the demands of our riders and customers alike.

To optimise the weight, strength and stiffness, the Mega Carbon frame features a T700/800 UD woven carbon fibre frameset (Front and rear Triangle). The new carbon swingarms helps reduce the unsprung weight on the rear of the bike. Again, the Mega is available in both 27.5” or 29” wheel sizes, with both frame designs tailored around each wheel size. All forged part are also made from 6061-T6 Aluminium

After winning 4 Enduro World Series Titles in 3 years the all new design is an evolution of our ultimate Enduro bike. At the heart of the frame is all new suspension Kinematics, designed to be more subtle off the top, whilst remaining progressive and predictable . Anti-Squat is used to create an effective pedalling bike that can be thrashed through technical terrain. The useable SAG range is also widened to allow riders to tune the suspension to the trails. Other key features include:

  • All New Carbon chassis
  • Designed and improved suspension kinematics
  • Tube In Tube design for easy cable installation
  • All new Geometry
  • Optimised sizing/fit - Small to XXL
  • Sram UDH
  • Now fits a 750ml water bottle inside the main front triangle!

The new Mega frame is optimised around the rider and weight distribution. The new geometry features dynamic saddle offset. Seat angles are optimised for each frame size and the seat tube itself is designed to take a longer dropper post if required.


FRAME   Nukeproof Mega V4 275 Carbon, 165mm Travel, ultra-strong monocoque UD Carbon Fibre frame, internally piped cable routing, ISCG 05 mounts, Enduro Bearings, Threaded 73mm BB, Boost 148mm rear axle spacing, 3D contoured Rubber frame protection and Factory fitted clear paint protection kit covering TT/DT/CS/SS
 FORK    Fox 38 Float, Factory Series, Kashima, Grip 2 Damper, 170mm, 37mm Offset, BOOST, Black (SHORT ID: D6G5)
SHOCK   Fox Float X2, Factory Series, Kashima, EVOL, 2 Position lever, Custom CL, RM, Rezi CM tune, 230x62.5mm, Bearing End, 2x 0.3 spacer fitted. (SHORT ID: D7JJ)
FRONT WHEEL   DT Swiss EX1700 SPLINE 30,27.5", 6 Bolt, 110x15mm
REAR WHEEL   DT Swiss EX1700 SPLINE 30, 27.5", 6 Bolt, Shimano Microspline Driver, 148x12mm
TYRES   Front: Michelin Wild Enduro 29" x 2.4, GUM-X TS TLR, Rear: Michelin Wild Enduro 29" x 2.4, GUM-X TS TLR
CRANKSET   Shimano XT M8100 12-Speed, Hollowtech 2, 170mm, 32T, 52mm Chainline
SHIFTER   Shimano XT M8100-R, 12-speed Rapidfire Plus, I-Spec EV
REAR DERAILEUR   Shimano XT M8100, SGS 12-Speed, Shadow Plus
CHAIN   Shimano XT M8100 HG 12-speed Inc Quicklink
CASSETTE





 Shimano XT M8100-12, 12-Speed (HYPERGLIDE+), 10-51T
CHAIN GUIDE   Nukeproof Guide with Bash, 28-36T, ISCG-05, black
BRAKES   Shimano XT M8120, 4 Pot Brake, Metallic Pads with Fins
FRONT ROTOR   Shimano SM-RT76, 203mm
REAR ROTOR   Shimano SM-RT76, 180mm
HANDLEBARS   Nukeproof Horizon V2 25mm Rise, Width - S780mm, M780mm, L800mm, XL800mm, XXL800mm)
STEM   Nukeproof Horizon, 50mm, Black
SADDLE   Nukeproof Horizon Enduro, Black
SEATPOST   Bikeyoke Divine Stealth w Shimano SL-MT500-IL Remote lever, S: 125mm drop; M/L:160mm drop; XL/XXL:185mm drop
HEADSET   Nukeproof, 44-56 IITS
GRIPS   Nukeproof Sam Hill Signature
BEARINGS   Enduro Bearings
WEIGHT(SIZE MEDIUM)    14.8Kgs/32.5lbs (Tubeless)
