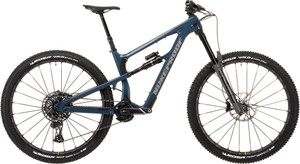

Nukeproof Mega 290c Elite (2021)

Nukeproof Mega 290c Elite (2021)

Nukeproof
£4,349.99
(No reviews yet)
Current Stock:
Description

Since 2009 the Nukeproof Mega has been on a constant development to meet the demands of our riders and customers alike.

To optimise the weight, strength and stiffness, the Mega Carbon frame features a T700/800 UD woven carbon fibre frameset (Front and rear Triangle). The new carbon swingarms helps reduce the unsprung weight on the rear of the bike. Again, the Mega is available in both 27.5” or 29” wheel sizes, with both frame designs tailored around each wheel size. All forged part are also made from 6061-T6 Aluminium

After winning 4 Enduro World Series Titles in 3 years the all new design is an evolution of our ultimate Enduro bike. At the heart of the frame is all new suspension Kinematics, designed to be more subtle off the top, whilst remaining progressive and predictable . Anti-Squat is used to create an effective pedalling bike that can be thrashed through technical terrain. The useable SAG range is also widened to allow riders to tune the suspension to the trails. Other key features include:

  • All New Carbon chassis
  • Designed and improved suspension kinematics
  • Tube In Tube design for easy cable installation
  • All new Geometry
  • Optimised sizing/fit - Small to XXL
  • Sram UDH
  • Now fits a 750ml water bottle inside the main front triangle!

The new Mega frame is optimised around the rider and weight distribution. The new geometry features dynamic saddle offset. Seat angles are optimised for each frame size and the seat tube itself is designed to take a longer dropper post if required.


FRAME Nukeproof Mega V4 290 Carbon, 160mm Travel, ultra-strong monocoque UD Carbon Fibre frame, internally piped cable routing, ISCG 05 mounts, Enduro Bearings, Threaded 73mm BB, Boost 148mm rear axle spacing, 3D contoured Rubber frame protection and Factory fitted clear paint protection kit covering TT/DT/CS/SS.
FORK Fox 36 Float, Performance Elite Series, Grip 2 Damper, 170mm, 44mm Offset, BOOST, Black (SHORT ID: D6F9)
SHOCK Fox Float X2, Performance Series, EVOL, 2 Position lever, Custom CL, RM, Rezi CM tune, 230x62.5mm, Bearing End, 2x 0.3 spacer fitted. (SHORT ID: D7JH)
FRONT WHEEL DT Swiss E1900 SPLINE 29", 6 Bolt, 110x15mm
REAR WHEEL DT Swiss E1900 SPLINE 29", 6 Bolt, Shimano Microspline Driver, 148x12mm
TYRES Front: Michelin Wild Enduro 29" x 2.4, GUM-X TS TLR, Rear: Michelin Wild Enduro 29" x 2.4, GUM-X TS TLR
CRANKSET Shimano SLX M7100 12-Speed, Hollowtech 2, 170mm, 30T, 52mm Chainline
SHIFTER Shimano SLX M7100-IR, 12-speed Rapidfire Plus, I-Spec EV
REAR DERAILEUR Shimano SLX M7100, SGS 12-Speed, Shadow Plus
CHAIN Shimano SLX M7100 HG 12-speed Inc Quicklink
CASSETTE  Shimano SLX M7100-12, 12-Speed (HYPERGLIDE+), 10-51T
CHAIN GUIDE Nukeproof Guide, 28-36T, ISCG-05, black
BRAKES Shimano SLX M7120, 4 Pot Brake, Metallic Pads with Fins
 FRONT ROTOR Shimano SM-RT66, 203mm
REAR ROTOR Shimano SM-RT66, 180mm
HANDLEBARS Nukeproof Horizon V2 25mm Rise, Width - S780mm, M780mm, L800mm, XL800mm, XXL800mm)
STEM Nukeproof Horizon, 50mm, Black
SADDLE Nukeproof Horizon Enduro, Black
SEATPOST Brand X Ascend internal w Shimano SL-MT500-IL Remote lever, S:125mm drop; M:150mm drop; L/XL/XXL:170mm drop
HEADSET Nukeproof, 44-56 IITS
GRIPS Nukeproof Sam Hill Signature
BEARINGS Enduro Bearings
WEIGHT(SIZE MEDIUM) 14.7Kgs/32.3lbs (Tubeless)
