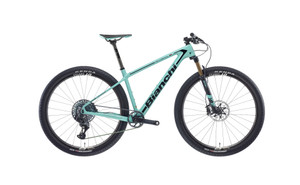

Bianchi METHANOL CV S 9.1– GX EAGLE 1X12SP

AGGRESSIVE OFF-ROAD PERFORMANCE

WITH METHANOL CV S VERSION, BIANCHI EXTENDS THE AVAILABILITY OF THE WORLD-FAMOUS METHANOL FRAME PLATFORM, ENGINEERED WITH BIANCHI CV SYSTEM. THE METHANOL CV IN ITS S VERSION SHARE THE SAME FAMILY FEELING OF THE RS MODEL, DESIGNED FOR THE MOST DEMANDING BIKERS.

METHANOL CV S IS DEDICATED TO PERFORMANCE RIDERS LOOKING FOR AN AGGRESSIVE RACE-READY MODEL

COUNTERVAIL

The key technology Countervail® is a carbon composite-material system that combines patented structural carbon with viscoelastic resin.

BIANCHI CV INTEGRATED VIBRATION CANCELLING SYSTEM

Bianchi collaborated with Materials Sciences Corporation to develop our innovative and exclusive use of the MSC’s patented Countervail® integrated vibration cancelling system for cycling.

Countervail® is a carbon composite-material system that, with special fiber architecture, combines patented structural carbon with viscoelastic resin. Countervail® cancels 80% of vibrations while increasing the stiffness and strength of our carbon frames and forks.

Countervail® is embedded within the entire frame of Bianchi CV high-performance road and MTB models: Specialissima, Oltre XR4, Oltre XR3, Infinito CV, Aquila CV and Methanol CV.

PROVEN IN NASA AEROSPACE OPERATIONS

Traditional passive damping in frames using superficial rubber inserts and isolators are marginally effective compared to the integrated carbon Countervail® system developed by Bianchi for cycling and proven in the extreme conditions of NASA aerospace operations.

TYRES CLEARANCE

Like the RS version, Methanol CV S frame is designed to accomodate larger tyres up to 58mm width.

BIKE TECH SPECS

COLOR

2A - CK16/BLACK GLOSSY

BIKE TECH SPECS

• SIZES

  380 430 480 530

• FRAME

  METHANOL CV S 29" CARBON HM MONOCOQUE W/BIANCHI CV, 1.5" TAPERED HT, PRESSFIT BB92 (41X92MM), HDM FD, BOTTOM PULL, 27.2MM SEATPOST, PM 160MM CARBON DROPOUT 12X148MM BOOST SHIMANO THRU AXLE, INTERNAL CABLE ROUTING DI2 COMPATIBLE, SIZES 15,17,19,21"

• FORK

  ROCK SHOX SID SL SELECT+ 29", CHARGER 2, SOLO AIR 100MM

• HEADSET

  FSA ORBIT C-40

• SHIFTERS

  SRAM GX EAGLE 1X12SP

• REAR DERAILLEUR

  SRAM GX EAGLE 12SP

• CRANKSET

  SRAM GX EAGLE DUB 32T, 52MM CHAINLINE BOOST COMPATIBLE, CRANK LENGTH: 170MM-15", 175MM-17/21"

• BB

  SRAM DUB PRESSFIT BB92, 41X92MM

• CHAIN

  SRAM GX EAGLE 12SP

• SPROCKET

  SRAM XG-1275 12SP, 10-12-14-16-18-21-24-28-32-36-42-50T

• BRAKES

  SHIMANO M6100

• WHEELS

  WTB KOM LIGHT I25 29"

• REAR HUB

  FORMULA CL-1481

• FRONT HUB

  FORMULA CL-811

• TIRE

  KENDA BOOSTER PRO 29X2.20

• STEM

  TEC CURSUS 3D FORGED AL7050-T6, +/-7º, 1.1/8", 31.8MM, EXT: 70MM-15'', 90MM-17/19", 100MM-21"

• HANDLEBAR

  TEC CURSUS FLAT, DOUBLE BUTTED AL2014-T6, WIDTH 720MM, DIAM. 31,8MM, BACKSWEEP 9°

• GRIPS

  T-ONE T-GP43X

• SEATPOST

  TEC OBVIUS, AL6061 SHAFT WITH FORGED HEAD, Ø27.2MM, 0MM SEATBACK, LENGTH 350MM FOR 15'' AND 400MM FOR 17,19,21"

• SADDLE

  SELLE ROYAL SETA S1, MANGANESE RAIL, 277X144MM

• ROTOR

  SHIMANO SM-RT54 CL 180MM & 160MM, CENTER LOCK
