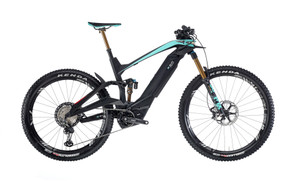

Bianchi E SUV RACER XTR 12SP

UTILITY UNLEASHED

HUMAN-MACHINE INTERACTION REACHES A NEW THRESHOLD WITH THE NEW BIANCHI E-SUV: A DISRUPTIVE E-MTB, WITH 720WH BATTERY AND INTEGRATED LIGHTS, THAT EMBODIES THE MARRIAGE OF STYLE AND FUNCTION



INSPIRATION

Bianchi Lif-e, the new world of Bianchi Electric Intelligence, presents e-SUV: the new generation of e-bikes designed with user interaction in mind.

e-SUV stands for electric sports utility vehicle. It’s about going anywhere, following your spirit of adventure.

It’s the bike that embodies the Bianchi Lif-E program of electric intelligence.



– Create new design and functionality for the best e-mobility



– Improve the e-riding experience through human-machine interface



– Support the cyclist to ride with style and safely



DEVELOPMENT CRITERIA

With the idea to create a new generation of e-bikes, Bianchi let design, integration and function be the guides of its product development process

DESIGN

The design of the Bianchi e-SUV is highly innovative.

The full carbon frame shows edgy shaped triangles, inspired by the Dolomites to create a connection between nature and technology.



INTEGRATION

– Integrated motor unit and battery

– Integrated handlebar

– Integrated lights (front and rear)



BATTERY

The Bianchi SUV features a 720Wh fully integrated battery.

The battery cover features a unique cooling system inspired by the self ventilated facased in modern architecture. It works as a forced air vertical duct that prevents the engine and the battery from overheating. An intake allows the fresh air to enter from the top. The fresh air flows trough an nternal duct above the battery and escapes from the bottom. This flow works as a vacuum system reduces the heat of both the battery and the motor.



SAFETY

Attention to rider’s safety and well-being is key to the Bianchi Lif-e project. With this in mind we have designed the new e-SUV with integrated front, side and rear led lights. Light are designed in cooperation with Spanninga

ADVANTAGES:

– Improved visibility during night time or low light conditions

– See and be seen in case of urban commuting and transfers



ASYMMETRICAL SWING ARM

ADVANTAGES:

– Prevent chainstay damages

– Decrease the noise from the chain hitting the frame

– Aesthetics







BIKE TECH SPECS

COLOR

CM - BLACK/CK16 MATT



SIZES

430 480 530



FRAME

BIANCHI E-SUV FULL CARBON 150MM, 1.5" TAPERED HT, SEATPOST DIAM.31,6MM, INTEGRATED SEAT CLAMP, PM 180MM, THRU AXLE 12X148MM, INTERNAL CABLE ROUTING, SIZES 43,48,53CM



FORK

FOX 36 FLOAT 29" FACTORY, SPECIFIC E-BIKE TUNING, 160MM TRAVEL



REAR SHOCK

FOX FLOAT X2 FACTORY



HEADSET

FSA NO.55R/558 1.5"



SHIFTERS

SHIMANO XTR SL- M9100IR 1X12SP



REAR DERAILLEUR

SHIMANO XTR RD-M9100SGS 12SP SHADOW+ DESIGN



CRANKSET

SHIMANO FC-E8000 ALU, CRANK LENGTH 165MM



BB

INCLUDED W/MOTOR UNIT



CHAIN

SHIMANO CN-M8100 12SP



SPROCKET

SHIMANO CS-M8100-12, 10-51T



BRAKES

SHIMANO XTR BR-M9120, 4 PISTONS BRAKES



WHEELS

DT SWISS HXC1200 SPLINE CARBON 29" 30MM, THRU AXLE 15X110MM FRONT, 12X148MM REAR



TIRE

KENDA HELLKAT 29X2.6



STEM

INTEGRATED W/HANDLEBAR



HANDLEBAR

BIANCHI FULL CARBON INTEGRATED HANDLEBAR/STEM



GRIPS

T-ONE ROCK T-GP34 SINGLE LOCK GRIP



SEATPOST

FOX TRANSFER FACTORY, INTERNAL CABLE ROUTING, DIAM. 31,6MM, TRAVEL: 100MM-15", 125MM-17", 150MM-19/21"



SADDLE

FI'ZI:K TAIGA, S-ALLOY RAILS



ROTOR

SHIMANO FRONT: RT-MT900 & REAR: RT-EM910 WITH MAGNET FOR SPEED SENSOR, DIAM. 203MM



PEDALS

INCLUDED



MOTOR

SHIMANO STEPS E-8000 W/DU-E8000 DRIVE UNIT, W/720WH DARFON BATTERY, W/34T CHAINRING, W/SPEED SENSOR, W/SC-E8000 CYCLE COMPUTER
