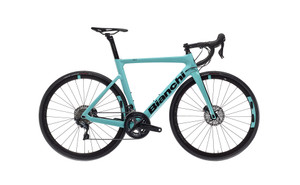

Bianchi Aria ULTEGRA Disc 11SP 50/34 (2021)

MASTER THE ELEMENTS

THE ARIA IS AN AERO RACE BIKE FOR THE RIDER WHO WANTS TO GO FAST AND LOOK GOOD WHILE THEY’RE DOING IT. IT’S STREAMLINED ENOUGH FOR ROAD RACING OR SHORTER-DISTANCE TRIATHLONS, WITH A RIGID PERFORMANCE-ORIENTED FRAME

ULTIMATE AERODYNAMIC PERFORMANCE

Aria is a fast performance-oriented aero road bike. Built for lovers of speed, it is the perfect partner for your road challenges. Our objective has been to extend the range of Bianchi aero road bikes with an all-new model based on a highly aerodynamic frame-fork system, equipped for any road race, and easily set-up for triathlon events.





FULL AERO

To achieve fast rides from full aerodynamic performance it’s important that both the bike and the rider are as aerodynamically efficient as possible.



At Bianchi, while we feed the learnings from research and development across all ranges into new models, the ARIA’s advanced aerodynamic design has been heavily inspired by our extensive wind-tunnel testing and cooperation with Bianchi pro riders.



For the bike, full aerodynamic performance means the shape of the tubes’ profiles and their structural combination to cheat the wind’s resistance, resulting in the lowest drag possible.



For the rider, full aerodynamic performance means creating a position that allows for the least air resistance – this can only be achieved with a frame and fork geometry that allows for an advanced tuck position, and an ideal racing geometry.



Aero frame plus aero rider position equals Full Aero.



CARBON AERO SEATPOST

Aero seatpost with integrated look and adjustable head clamp offset 25mm or -10mm



BIKE TECH SPECS

SIZES

440 470 500 530 550 570 590 610



FRAME

ARIA DISC CARBON, MECHANICAL/ELECTRONIC SHIFTING COMPATIBLE, PRESSFIT 86,5X41MM BB, HEAD TUBE 1.4"-1.1/8", INTEGRATED SEAT CLAMP, FULL CARBON DROPOUT, FLAT MOUNT, THRU AXLE 12X142MM, SIZES 44-47-50-53-55-57-59-61CM



FORK

BIANCHI FULL CARBON DISC 1.4">1.1/8", THRU AXLE 12X100MM



HEADSET

FSA ORBIT C-33, NO.44E, 1.1/8">1.1/4"



SHIFTERS

SHIMANO ULTEGRA ST-R8020 2X11SP WITH ULTEGRA ST-R8025 SMALLER LEVER SIZE FOR SIZES 44/53CM



REAR DERAILLEUR

SHIMANO ULTEGRA RD-R8000 SS 11SP



FRONT DERAILLEUR

SHIMANO ULTEGRA FD-R8000



CRANKSET

SHIMANO ULTEGRA FC-R8000 52X36T, CRANK LENGTH: 165MM-44CM, 170MM-47/53CM, 172.5MM-55/59CM, 175MM-61CM



BB

SHIMANO SM-BB72-41B



CHAIN

KMC X11-1 EPT FINISH, 11SP



SPROCKET

SHIMANO 105 CS-R7000 11SP, 11-12-13-14-15-17-19-21-24-27-30T



BRAKES

SHIMANO BR-R8070



BRAKE LEVERS

INCLUDED W/SHIFTERS



WHEELS

FULCRUM RACING 618 DISC BRAKE



TIRE

VITTORIA RUBINO IV G2.0 GRAPHENE 700X28



STEM

REPARTO CORSE 3D FORGED ALLOY 6061, RISE -8°, , 1.1/8", EXT: 70MM-44, 90MM-47/50CM, 100MM-53CM, 110MM-55/57CM, 120MM-59CM, 130MM-61CM



HANDLEBAR

REPARTO CORSE AERO COMPACT, ALLOY 6061 DIAM. 31,8MM, REACH 74MM, DROP 116MM, SIZE: 400MM-44/53CM, 420MM-55/59CM, 440MM-61CM



GRIPS

LA SPIRALE RIBBON CORK



SEATPOST

ARIA FULL CARBON AERO, CLAMP WITH ALLOY HEAD ADJUSTABLE AND REVERSIBLE +/- 35MM; LENGTH: 250MM-44CM, 300MM-47/50CM, 350MM-53/61CM



SADDLE

SELLE ROYAL SETA S1, STEEL RAILS, 278X144MM



ROTOR

SHIMANO SM-RT800 CENTER LOCK, DIAM. 160MM



WATERBOTTLE

BIANCHI LOLI 600ML



WATERBOTTLE HANGER

ELITE PARON RACE COMPOSIT
