Surly Cross Check 10 speed

£710.00 - £1,400.00
(No reviews yet) Write a Review

Steel Commuter Bike That Can Do it All

There is no such thing as one bike that can do it all, but Cross-Check comes pretty damn close. It's a dyed-in-the-wool commuter and utility rig. It was a "gravel crusher" long before "gravel bikes" existed. Some people have even raced cyclocross on it. Though, we don't necessarily condone that behavior.

Cross-Check was the first complete bike we ever offered. Since then, people have modified them hundreds of different ways to suit their riding styles and preferences. There’s a reason that nearly every person who has ever worked for Surly has owned one.

  • Semi-horizontal dropouts for singlespeed compatibility and wheelbase adjustability
  • Gnot-Rite dropout spacing allows installation of 130 and 135mm hubs
  • Accommodations for front and rear racks and fenders
  • Clearance for 700c x 42mm tires with or without fenders

DROP BAR

Frameset

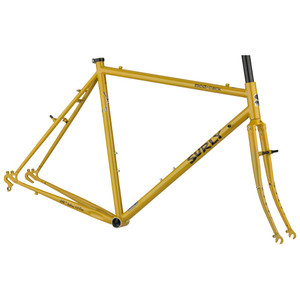

Frame Surly Cross-Check, Surly 4130 CroMoly steel.
Fork Surly Cross-Check, 4130 CroMoly, lugged & brazed.
Seatpost Clamp Surly stainless, 30.0mm

Components

Headset Cane Creek Custom 5
Brakes Tektro M730 V-Brake
Braker Levers Tektro RL520
Shifters Microshift BS-M10, bar-end shifter
Stem HL 31.8
Handlebar Salsa Cowbell 3
Grip/Tape Black Cork
Saddle WTB Volt Sport
Seatpost Kalloy

Drivetrain

Crankset Shimano CX50, 36/46t
Bottom Bracket Shimano 4600
Front Derailleur Shimano Tiagra 4600
Rear Derailleur Shimano Deore T610-SGS
Cog or Cassette Shimano CS-HG50-10, 11-32, 10-speed
Chain KMC X10

Wheels

Front Hub Shimano Deore T610, 32h, 100mm, w/QR
Rear Hub Shimano Deore T610, 32h, 135mm, w/QR
Rims Alex Adventurer 2, tubeless ready
Tires Surly Knard, 700c x 41mm, 33 tpi



Flat Bar

Frameset

Frame Surly 4130 CroMoly steel. Main triangle double-butted.
Fork Surly Cross-Check, 4130 CroMoly, lugged & brazed.
Seatpost Clamp Surly stainless, 30.0mm

Components

Headset Cane Creek 10 series, custom
Brakes Tektro M730 V-Brake
Braker Levers Tektro CL520
Shifters SRAM X5
Stem HL 25.4
Handlebar Dimension Arc
Grip/Tape Velo Black
Saddle WTB Volt Sport, steel rails
Seatpost ProMax

Drivetrain

Crankset E400 42Tw/Chainguard
Bottom Bracket UN55
Front Derailleur N/A
Rear Derailleur X5
Cog or Cassette PG920 11-34
Chain KMC Z9

Wheels

Front Hub Formula RB51, 32H
Rear Hub Formula RB51, 32H
Rims Alex DH19
Tires Surly Knard, 700c x 41mm, 33 tpi
