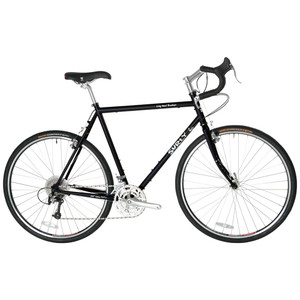

Surly Long Haul Trucker Frameset

Surly Long Haul Trucker Frameset

Surly
£550.00
(No reviews yet)
Current Stock:
Description

Long Distance Cargo Bike Ready to Go Anywhere

Designed for comfort while simultaneously hauling a lot of stuff long distances, many consider Long Haul Trucker to be the gold standard of touring bikes. It features everything a long-distance bicycle tourist would need when traversing the globe.

LHT’s applications go well beyond global touring. It’s a great option for what we refer to as "extreme commuting." That means more than just carrying your laptop and change of clothes with you. You have the capacity for whatever the day throws at you.

  • Every braze-on you’ll ever need: front and rear rack mounts, fender eyelets, water bottle bosses, spare spoke holder, pump peg
  • Available in 26” (sizes 42–58 cm) and 700c (sizes 56–62 cm) wheel diameters
  • Rim brake-specific (if disc brakes are more your thing, check out the Disc Trucker)
  • Clearance for 26” x 2.1” tires with or without fenders (26” platform) or 700c x 42mm with fenders, 45mm without fenders (700c platform)
Frame Construction

4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
Fork Construction

4130 Chromoly, Natch tubing, double-butted tapered fork blades, brazed lugs, ED coated
Rear Dropout Configuration

Vertical
Rear Hub Spacing

10 x 135mm
Front Hub Spacing

10 x 100mm
Rear Brake

Rim - Canti (removable posts)
Front Brake

Rim - Canti (removable posts)
Head Tube

Ø34mm
Steerer Tube

Ø28.6mm (1-1/8")
Crown Race

Ø30mm (1-1/8")
Stock Headset Upper (S.H.I.S.)

EC34/28.6
Stock Headset Lower (S.H.I.S.)

EC34/30
Seat Collar

Ø30mm
Seatpost

Ø27.2mm
Front Derailleur (Clamp)

Bottom-pull (Ø28.6mm)
Max Chainring (CL)[3]

1x (Road): 44T

2x (Road): 42/53T

3x (Road): 38/52/56T
Bottom Bracket

68mm threaded (1.37" x 24TPI)
Tire Clearance Frame [1]/[2]

26in: 26 x 2.1" (w/ fenders)

700c: 700c x 42mm (w/ fenders)

700c: 700c x 45mm (w/o fenders)
Tire Clearance Fork [1]

26in: 26 x 2.0"  (with or without fenders)

700c: 700c x 50mm (with or without fenders)

700c: 29 x 2.0" (with or without fenders)
Rigid Fork Spec

26in: 376 x 45mm

700c: 390 x 45mm
Max Suspension Fork Length [4]

N/A
Bottle Mounts Frame

3 Standard
Bottle Mounts Fork

N/A
Rack Mounts Frame

Yes (upper and lower threaded)
Rack Mounts Fork

Yes (upper, lower, and mid-blade threaded)
Fender Mounts Frame

Yes
Fender Mounts Fork

Yes
Other Features

Chainstay mounted spoke holder

Surly removable kickstand plate (included)

Downtube mounted shifter bosses
