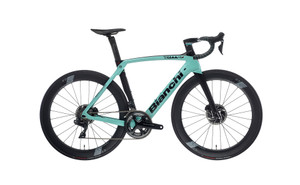

MAXIMIZE AERO ADVANTAGE AND CONTROL
THE OLTRE XR4 ENGINEERED WITH COUNTERVAIL IS A BIKE DRIVEN TO PERFORM. ITS PRECISION HANDLING, COMBINED WITH VIBRATION-CANCELLING BIANCHI CV SYSTEM, PROVIDES INCOMPARABLE CONTROL. PERFECT POWER TRANSFER MEANS EVERY WATT YOU PUSH THROUGH THE PEDALS TAKES YOU CLOSER TO THE WIN. IF YOU WANT IT BAD ENOUGH, THE OLTRE XR4 IS THE TOOL TO TAKE YOU TO THE TOP
CUTTING EDGE OF AERODYNAMICS
Oltre XR4 is designed with advanced CFD (Computational Fluid Dynamics) simulation software to predict the impact of aerodynamic drag and is wind tunnel tested
FLOW VISUALIZATION
A special fluorescent paint (borrowed form F1 Car design) is flown over the frame and fork’s surfaces at race speed. The interpretation of their trace patterns and intensity reveal the aerodynamic performance of every aspect
AERO HEADTUBE
Tapered headtube takes inspiration from Aquila CV aero profiles and is designed to integrate the aero handlebar and the headset.
Bianchi has developed two different top cup for Vision Metron5D handlebar and conventional stems
AERO SEATPOST
Aero seatpost with integrated look and adjustable head clamp offset 25mm or -10mm
POWER. PRECISION. CONTROL.
Roglič, Groenewegen, Van Aert and Teunissen. Riders who know what it takes to win at the very highest level. It takes commitment and sacrifice. It takes guts, the ability to suffer and to win when every fibre of your soul is screaming at you.
As the innovation partner of Team Jumbo-Visma, we work to give them the tools they need to compete and win at the highest level in every race situation.
Whether it’s Roglič battling in the mountains, Van Aert fighting to get in a breakaway or Teunissen and Groenewegen outsprinting their rivals – all use the Oltre XR4 to win.
ENGINEERED WITH BIANCHI CV SYSTEM
Oltre is engineered with the Bianchi CV System with the use of Countervail® carbon material to cancel the road vibration. The result is in a smooth ride and a racer who can stay focused in his fastest, most efficient aerodynamic position for longer.
WHAT IS COUNTERVAIL®?
The key technology Countervail® is a carbon composite-material system that combines patented structural carbon with viscoelastic resin.
BIANCHI CV INTEGRATED VIBRATION CANCELLING SYSTEM
Bianchi collaborated with Materials Sciences Corporation to develop our innovative and exclusive use of the MSC’s patented Countervail® integrated vibration cancelling system for cycling.
Countervail® is a carbon composite-material system that, with special fiber architecture, combines patented structural carbon with viscoelastic resin. Countervail® cancels 80% of vibrations while increasing the stiffness and strength of our carbon frames and forks.
Countervail® is embedded within the entire frame of Bianchi CV high-performance road and MTB models: Specialissima, Oltre XR4, Oltre XR3, Infinito CV, Aquila CV and Methanol CV.
PROVEN IN NASA AEROSPACE OPERATIONS
Traditional passive damping in frames using superficial rubber inserts and isolators are marginally effective compared to the integrated carbon Countervail® system developed by Bianchi for cycling and proven in the extreme conditions of NASA aerospace operations.
MAKE IT SPECIAL WITH TAVOLOZZA
TAILOR-MADE PROGRAM
Bianchi Tavolozza is the exclusive web color configurator available for Bianchi CV models engineered with Countervail® vibration cancelling technology. All frames personalized with Tavolozza color configurator, including graphics and logos, are hand-painted and decaled in Italy by expert craftsmen, combining Bianchi’s timeless skills of tailoring together with advanced technologies.
BIKE TECH SPECS
COLOR
5K - CK16/BLACK FULL GLOSSY OR TAVOLOZZA
2R - BLACK/GRAPHITE GLOSSY OR TAVOLOZZA
SIZES
440 470 500 530 550 570 590 610
FRAME
OLTRE XR4 CARBON W/COUNTERVAIL, MECHANICAL/ELECTRONIC SHIFTING COMPATIBLE, HEAD TUBE 1.4" - 1.1/8", DIRECT MOUNT BRAKES, PRESSFIT 86,5X41MM BB,SIZES 44-47-50-53-55-57-59-61CM
FORK
BIANCHI FULL CARBON AERO W/COUNTERVAIL, 1.1/8>1.4"
HEADSET
FSA ORBIT C-33 MATT UD CARBON 1.1/8">1.1/4
SHIFTERS
SHIMANO ULTEGRA DI2 ST-R8050 2X11SP
REAR DERAILLEUR
SHIMANO ULTEGRA DI2 RD-R8050 SS 11SP
FRONT DERAILLEUR
SHIMANO ULTEGRA DI2 FD-R8050
CRANKSET
SHIMANO ULTEGRA FC-R8000 50X34T, HOLLOWTECH II, CRANK LENGTH: 165MM-44CM, 170MM-47/53CM, 172.5MM-55/59CM, 175MM-61CM
BB
SHIMANO SM-BB72-41B
CHAIN
SHIMANO ULTEGRA CN-HG701-11, 11SP
SPROCKET
SHIMANO ULTEGRA CS-R8000, 11-12-13-14-15-17-19-21-23-25-28T
BRAKES
SHIMANO ULTEGRA BR-R8010, DIRECT MOUNT
BRAKE LEVERS
INCLUDED W/SHIFTERS
WHEELS
FULCRUM RACING 418
TIRE
VITTORIA CORSA G2.0 GRAPHENE 700X25
STEM
INCLUDED W/HANDLEBAR, OPTION STEM (ONLY FOR SPECIFIC COUNTRIES): REPARTO CORSE 3D FORGED ALLOY 2014, RISE - 8°, 1.1/8", EXT: 70MM 44/47CM, 90MM-50CM, 100MM-53CM, 110MM-55CM, 120MM-57/59CM, 130MM-61CM
HANDLEBAR
VISION METRON 5D, DROP 125MM, REACH 80MM, EXT: 100X400MM-44/50CM, 110X420MM-53/55CM, 120X420MM-57/59CM, 130X440MM-61CM, OPTION STEM (ONLY FOR SPECIFIC COUNTRIES): REPARTO CORSE AERO COMPACT, ALLOY 2014, DIAM. 31.8MM, REACH 80MM, DROP 130MM, SIZE: 400MM-44/50CM , 420MM-53/57CM, 440MM-59/61CM
GRIPS
BLACK SOFT MICROFIBER TAPES W/SHOCKPROOF EVA-139
SEATPOST
OLTRE FULL CARBON AERO; CLAMP WITH ALLOY HEAD ADJUSTABLE AND REVERSIBLE +/- 35MM, LENGTH: 250MM-44/47CM, 300MM-50/53CM, 350MM-55/59CM, 380MM-61CM, SETBACK: 25MM/-10MM
SADDLE
FI'ZI:K ARIONE R3 K:IUM
WATERBOTTLE
BIANCHI LOLI 600ML
WATERBOTTLE HANGER
REPARTO CORSE CARBON
