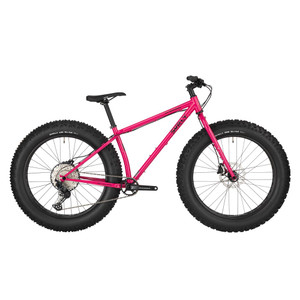

Surly Ice Cream Truck Frameset

£950.00
(No reviews yet) Write a Review

The Largest Tire Clearance on a Fat Bike Frame

From log and root covered ribbons of twisty singletrack to miles of powdery snow or sandy beaches, Ice Cream Truck can handle it all. Hell, you could probably even hop over a grizzly if the situation arises. Probably.

While we could certainly throw out terms like “confidence-inspiring” and “traction-laden” to describe Ice Cream Truck, those phrases are mostly bullshit, so we’re not going to do that. We’re not here to inspire you, and we didn’t laden it with anything. What we did do was design a monolith of a trail bike that doesn’t give two shits about what’s in front of it.

  • Long toptube, short seatstays, and a 68-degree headtube angle makes it tight and maneuverable on fast, technical terrain
  • Modern trail bike standards like stealth dropper post routing, 44mm headtube, and thru-axles
  • Clearance for a full 26” x 5” tire on 100mm rims
Frame Construction

4130 Chromoly, Natch tubing, double-butted main triangle, trumpet flared tubes, TIG welded, ED coated

Fork Construction

4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated

Rear Dropout Configuration

Horizontal slotted with optional vertical dumpout

Rear Hub Spacing

12 x 197mm (Surly axle included)

10 x 190mm with Surly 10/12 Adapter Washers (not included)

Front Hub Spacing

15 x 150mm (Surly axle included)

Rear Brake

Disc - 51mm I.S. (203mm max rotor)

Front Brake

Disc - 51mm I.S. (203mm max rotor)

Head Tube

Ø44mm

Steerer Tube

Ø28.6mm (1-1/8")

Crown Race

Ø30mm (1-1/8")

Stock Headset Upper (S.H.I.S.)

ZS44/28.6

Stock Headset Lower (S.H.I.S.)

EC44/30

Seat Collar

Ø33.1mm

Seatpost

Ø30.9mm

Front Derailleur (Clamp)

High direct mount top-pull (Ø34.9mm)

55mm offset adapter (not included)

Max Chainring (CL)[3]

1x (Fat bike 190): 34T [6]

2x (Surly OD): 22/36T

Bottom Bracket

100mm threaded (1.37" x 24TPI)

Tire Clearance Frame [1]/[2]

26 x 5.1" (rear axle position)

26 x 4.8" (front axle position)

29 x 3.0"

Tire Clearance Fork [1]

26 x 5.25"

29 x 3.0"

Rigid Fork Spec

483 x 47mm

Max Suspension Fork Length [4]

571 x 51mm (Fatbike 140mm)

Bottle Mounts Frame

1 Standard (XS - M)

2 Standard (L - XXL)

Bottle Mounts Fork

2 Three-Pack

Rack Mounts Frame

Yes (upper and lower threaded)

Rack Mounts Fork

Yes (upper, lower, and mid-blade threaded)

Fender Mounts Frame

Yes

Fender Mounts Fork

N/A

Other Features

Internal dropper post routing compatible
