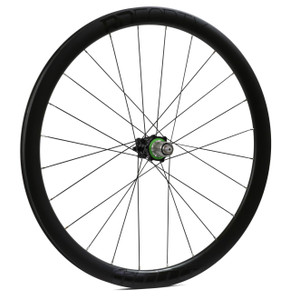

The RD40 wheelset is our game changing carbon road/cyclo cross wheelset. Combining the latest in carbon technology with our versatile and enduring RS4 Disc straight pull hubs these wheels were designed for uncompromised performance for a wide range of disciplines.
Built with RS4 straight pull 6 bolt 24 hole hubs using Sapim CX-Ray black straight pull spokes
Wheels are built from start to finish by hand in Barnoldswick
Only available in 700c
Carbon Clincher rim, tubeless compatible (Valve and Tape supplied)
Available with either a Shimano or Campag freehub body
Designed to suit disc brake sets using 6 bolt rotors
The RS4 rear hubs feature the reduced drag ratchet mechanism
Complete wheel Weights: 1495g pair
Hope RD40 Carbon - RS4 S-Pull 6 Bolt Tech Specs >
24mm Tape, Valve and wipe included for Tubeless setup
Rim dimensions: 40mm deep, 26.5mm external width and 19mm internal width
Rim ERD is 563mm
Rim width is ideal to suit larger volume road/cross tyres.
Strong monocoque, undirectional carbon fibre construction rim
Weight for rim only
24 hole straight pull complete wheels
Wheels are built using high quality Sapim CX-Ray Aero black straight spokes and brass nipples.
Wheels come supplied with QR and 12mm end caps for front wheel and rear wheel comes with QR and 142x12 end caps as standard.
Choose from our 6 different hub colour options.
Wheels can be adapted quickly and easily to suit different frame and fork fitting using our conversion kits available separately.
